SIC tubular heat exchangers use heat-resistant tubes made of corrosion-resistant silicon carbide that are ideal for heating, cooling and condensing chemically corrosive process media. Typical applications include: bromine, sulfuric acid, hydrofluoric acid
● Test each heat exchange tube under pressure of 185 Bar before installation ● Heat exchanger housing diameter range from DN100 to DN600 ● The standard length of the heat exchange tube is 1000 to 4000mm ● Heat exchange area is 0.32 to 58 square ● Heat
● Test each heat exchange tube under pressure of 185 Bar before installation ● Heat exchanger housing diameter range from DN100 to DN1000 ● The standard length of the heat exchange tube is 1000 to 4000mm ● Heat exchange area is 1 to 200 square ● Heat
● Test each heat exchange tube under pressure of 185 Bar before installation ● Heat exchanger housing diameter range from DN100 to DN600 ● The standard length of the heat exchange tube is 1000 to 3000mm ● Heat exchange area is 1 to 40 square ● Heat ex

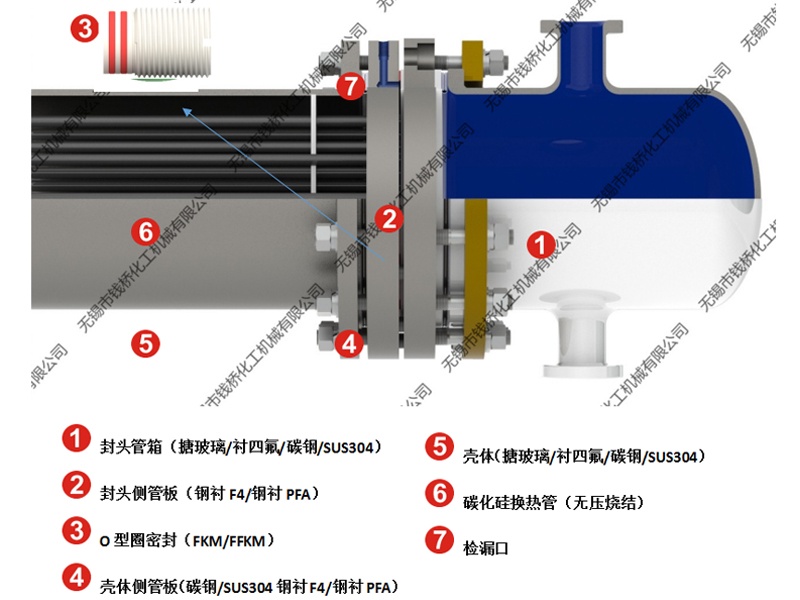

Reinforced type [steel lined F4 or steel lined PFA] SIC heat exchange ● Test each heat exchange tube under pressure of 185 Bar before installation ● Heat exchanger housing diameter range from DN100 to DN600 ● The standard length of the heat exchange tu

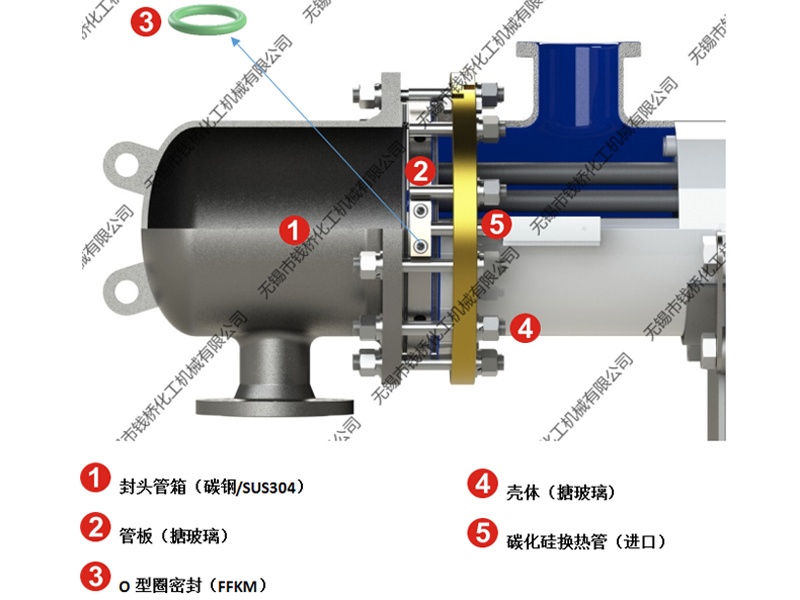

Double tube SIC heat exchange ● Test each heat exchange tube under pressure of 185 Bar before installation ● Heat exchanger housing diameter range from DN100 to DN600 ● The standard length of the heat exchange tube is 1000 to 3000mm ● Heat exchange ar
Ordinary SIC heat exchange,● Test each heat exchange tube under pressure of 185 Bar before installation ● Heat exchanger housing diameter range from DN100 to DN600 ● The standard length of the heat exchange tube is 1000 to 3000mm ● Heat exchange area i
